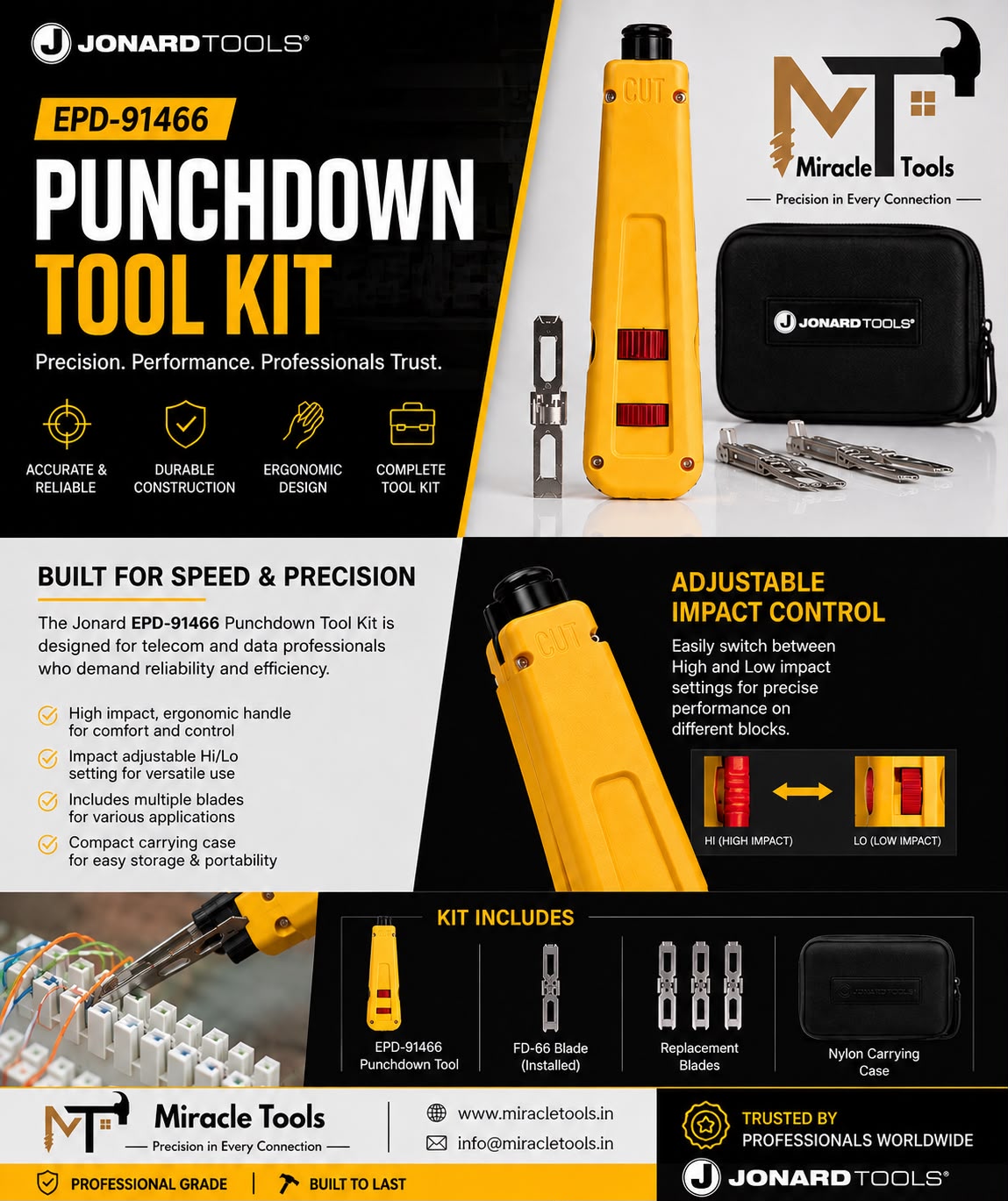

JONARD EDP-91466 Punchdown Tool Kit

JONARD EDP-91466 Punchdown Tool Kit

The JONARD EDP-91466 Punchdown Tool Kit is a professional manual punchdown tool designed to cleanly seat, terminate, and trim wires in 66-style cross-connect blocks. The kit combines the EPD-914 punchdown tool with an EPB-66 66-style punchdown blade, making it suitable for telecom and data-communications installation and maintenance.

The tool features High/Low impact settings and is designed for 22–28 AWG (0.08–0.34 mm²) solid or stranded wire. It also incorporates a combination hook/spudger, an enlarged blade-storage compartment, and a color-coded yellow-and-blue body. JONARD states that the EPD series has been tested for up to 100,000 cycles at the high-impact setting.

Key Features

Designed for 66-style cross-connect blocks

Includes EPB-66 66-style punchdown blade

High/Low impact settings

High impact: 40 lb / 178 N

Low impact: 30 lb / 133 N

Suitable for 22–28 AWG (0.08–0.34 mm²) solid or stranded wire

Integrated combination hook/spudger

Yellow-and-blue color-coded body

Enlarged blade-storage compartment

Tested up to 100,000 cycles at high impact

Compatible with JONARD EPB-series blades and similar compatible blades

Lifetime Warranty stated by JONARD

Suitable for telecom and data-communications installation work

Specifications

Specification Details

Stripping Range Not applicable – punchdown/termination tool

Fiber Type Not applicable

Stripping Stage Not applicable

Tool Type Manual Punchdown / Wire Termination Tool

Blade Material Hardened alloy steel with nickel plating

Handle Type Ergonomic molded tool body/hand grip

Length 7 in (17.78 cm)

Weight 0.31 lb (140.74 g)

Body Material Molded tool body; exact polymer grade not specified by JONARD

Blade Type 66-style punchdown blade

Block Type 66

Wire Size 22–28 AWG (0.08–0.34 mm²), solid or stranded

Impact Settings High: 40 lb / 178 N; Low: 30 lb / 133 N

Dimensions 7 x 1.5 x 1 in (17.78 x 3.81 x 2.54 cm)

Color Yellow and Blue

UPC 811490014909

Supplier Miracle Tools and Tackle LLP

JONARD specifies the EDP-91466 dimensions as 7 x 1.5 x 1 in and its weight as 0.31 lb (140.74 g). The manufacturer also identifies the included EPB-66 blade as hardened alloy steel with nickel plating.

Important Specification Note

Stripping Range, Fiber Type, and Stripping Stage are not applicable to the EDP-91466 because this product is a punchdown and wire-termination tool, not a fiber-optic stripping tool.

What's Included

1 × EPD-914 Punchdown Tool

1 × EPB-66 Punchdown Blade

The EPB-66 is specified by JONARD as a 66 blade with and without cutter.

Applications

The JONARD EDP-91466 is suitable for:

Telecom installation and maintenance

Data-communications wiring

66-style cross-connect blocks

Structured cabling

Network installation

Communication equipment servicing

Professional wire seating and termination

Wire trimming on compatible 66-style blocks

Frequently Asked Questions

1. What is the JONARD EDP-91466 used for?

The EDP-91466 is designed to terminate and trim wires in 66-style cross-connect blocks. It is intended for telecom and data-communications installers.

2. Which blade is included with the EDP-91466?

The kit includes the EPB-66 66-style punchdown blade.

3. What wire sizes does the EDP-91466 support?

The tool is designed for 22–28 AWG (0.08–0.34 mm²) solid or stranded wire.

4. Does the EDP-91466 have adjustable impact settings?

Yes. It provides High and Low impact settings. High impact is rated at 40 lb / 178 N, while low impact is 30 lb / 133 N.

5. Is the EDP-91466 suitable for fiber-optic cable stripping?

No. The EDP-91466 is a punchdown and wire-termination tool, not a fiber-optic stripping tool. Therefore, fiber type and stripping range do not apply.

6. What is the EPB-66 blade made of?

JONARD states that the EPB-66 is made from hardened alloy steel with nickel plating, designed for durability and long service life.

7. What are the dimensions of the JONARD EDP-91466?

The manufacturer specifies dimensions of 7 x 1.5 x 1 inches (17.78 x 3.81 x 2.54 cm).

8. How much does the EDP-91466 weigh?

The EDP-91466 weighs approximately 0.31 lb (140.74 g).

9. Does the punchdown tool include a hook or spudger?

Yes. The EPD series has a combination hook/spudger stored in the tool chassis.

10. Is the EDP-91466 designed for professional use?

Yes. JONARD describes the EPD series as suitable for telecom and data-communications installers and states that it has been tested for up to 100,000 cycles at the high-impact setting.

11. Can the EDP-91466 blade be replaced?

Yes. The EPB-66 is available as a replacement blade and is compatible with the EPD-914 punchdown tool.

12. What type of block does the EDP-91466 support?

The EDP-91466 is specifically designed for 66-style cross-connect blocks.

13. Is the EDP-91466 the same as the EPD-914?

The EPD-914 is the punchdown tool supplied without a blade, while the EDP-91466 is the kit variation supplied with the EPB-66 blade.

14. Who is the supplier of this product?

Miracle Tools and Tackle LLP is the supplier specified for this product listing.
