JONARD EDP-91466 Punchdown Tool Kit The JONARD EDP-91466 Punchdown Tool Kit is a professional manual punchdown tool designed to cleanly seat, terminate, and trim wires in 66-style cross-connect blocks. The kit combines the EPD-914 punchdown tool with an EPB-66 66-style punchdown blade, making it suitable for telecom and data-communications installation and maintenance. The tool features High/Low impact settings and is designed for 22–28 AWG (0.08–0.34 mm²) solid or stranded wire. It also incorporates a combination hook/spudger, an enlarged blade-storage compartment, and a color-coded yellow-and-blue body. JONARD states that the EPD series has been tested for up to 100,000 cycles at the high-impact setting. Key Features Designed for 66-style cross-connect blocks Includes EPB-66 66-style punchdown blade High/Low impact settings High impact: 40 lb / 178 N Low impact: 30 lb / 133 N Suitable for 22–28 AWG (0.08–0.34 mm²) solid or stranded wire Integrated combination hook/spudger Yellow-and-blue color-coded body Enlarged blade-storage compartment Tested up to 100,000 cycles at high impact Compatible with JONARD EPB-series blades and similar compatible blades Lifetime Warranty stated by JONARD Suitable for telecom and data-communications installation work Specifications Specification Details Stripping Range Not applicable – punchdown/termination tool Fiber Type Not applicable Stripping Stage Not applicable Tool Type Manual Punchdown / Wire Termination Tool Blade Material Hardened alloy steel with nickel plating Handle Type Ergonomic molded tool body/hand grip Length 7 in (17.78 cm) Weight 0.31 lb (140.74 g) Body Material Molded tool body; exact polymer grade not specified by JONARD Blade Type 66-style punchdown blade Block Type 66 Wire Size 22–28 AWG (0.08–0.34 mm²), solid or stranded Impact Settings High: 40 lb / 178 N; Low: 30 lb / 133 N Dimensions 7 x 1.5 x 1 in (17.78 x 3.81 x 2.54 cm) Color Yellow and Blue UPC 811490014909 Supplier Miracle Tools and Tackle LLP JONARD specifies the EDP-91466 dimensions as 7 x 1.5 x 1 in and its weight as 0.31 lb (140.74 g). The manufacturer also identifies the included EPB-66 blade as hardened alloy steel with nickel plating. Important Specification Note Stripping Range, Fiber Type, and Stripping Stage are not applicable to the EDP-91466 because this product is a punchdown and wire-termination tool, not a fiber-optic stripping tool. What's Included 1 × EPD-914 Punchdown Tool 1 × EPB-66 Punchdown Blade The EPB-66 is specified by JONARD as a 66 blade with and without cutter. Applications The JONARD EDP-91466 is suitable for: Telecom installation and maintenance Data-communications wiring 66-style cross-connect blocks Structured cabling Network installation Communication equipment servicing Professional wire seating and termination Wire trimming on compatible 66-style blocks Frequently Asked Questions 1. What is the JONARD EDP-91466 used for? The EDP-91466 is designed to terminate and trim wires in 66-style cross-connect blocks. It is intended for telecom and data-communications installers. 2. Which blade is included with the EDP-91466? The kit includes the EPB-66 66-style punchdown blade. 3. What wire sizes does the EDP-91466 support? The tool is designed for 22–28 AWG (0.08–0.34 mm²) solid or stranded wire. 4. Does the EDP-91466 have adjustable impact settings? Yes. It provides High and Low impact settings. High impact is rated at 40 lb / 178 N, while low impact is 30 lb / 133 N. 5. Is the EDP-91466 suitable for fiber-optic cable stripping? No. The EDP-91466 is a punchdown and wire-termination tool, not a fiber-optic stripping tool. Therefore, fiber type and stripping range do not apply. 6. What is the EPB-66 blade made of? JONARD states that the EPB-66 is made from hardened alloy steel with nickel plating, designed for durability and long service life. 7. What are the dimensions of the JONARD EDP-91466? The manufacturer specifies dimensions of 7 x 1.5 x 1 inches (17.78 x 3.81 x 2.54 cm). 8. How much does the EDP-91466 weigh? The EDP-91466 weighs approximately 0.31 lb (140.74 g). 9. Does the punchdown tool include a hook or spudger? Yes. The EPD series has a combination hook/spudger stored in the tool chassis. 10. Is the EDP-91466 designed for professional use? Yes. JONARD describes the EPD series as suitable for telecom and data-communications installers and states that it has been tested for up to 100,000 cycles at the high-impact setting. 11. Can the EDP-91466 blade be replaced? Yes. The EPB-66 is available as a replacement blade and is compatible with the EPD-914 punchdown tool. 12. What type of block does the EDP-91466 support? The EDP-91466 is specifically designed for 66-style cross-connect blocks. 13. Is the EDP-91466 the same as the EPD-914? The EPD-914 is the punchdown tool supplied without a blade, while the EDP-91466 is the kit variation supplied with the EPB-66 blade. 14. Who is the supplier of this product? Miracle Tools and Tackle LLP is the supplier specified for this product listing.

Jonard Cable Slit & Ring Tools (CSR-125, CSR-250, CSR-1575) are precision-engineered cable preparation tools designed for fast, safe, and accurate slitting and ring-cutting of fiber optic and communication cables. Built for professional installers and technicians, these versatile tools provide clean, controlled cuts without damaging the cable core, helping improve efficiency and reduce installation time. Featuring durable construction, ergonomic handles, and precision blades, the CSR series delivers reliable performance in demanding field environments. Ideal for telecommunications, FTTH, data centers, and network maintenance, these tools simplify cable access during installation, repair, and termination. Whether working on routine maintenance or large-scale fiber deployments, the Jonard CSR-125, CSR-250, and CSR-1575 offer the accuracy, durability, and ease of use professionals depend on every day.

Jonard FTB-1 Fiber Training Box is a compact, hands-on training solution designed to help students and technicians develop practical fiber optic installation, testing, and troubleshooting skills. Built for classrooms, laboratories, and field training, it provides a realistic learning environment for mastering fiber optic concepts while ensuring safe, reliable, and repeatable practice.

Jonard OTDR-1650 Multi-Function OTDR** is a professional handheld optical testing instrument operating at 1310/1550/1650 nm wavelengths. It is designed for fiber optic installation, maintenance, and troubleshooting, providing accurate fault location, fiber length measurement, and loss analysis. Ideal for FTTH, telecommunications, and enterprise fiber networks, it features a compact design, user-friendly interface, and reliable performance for field and laboratory applications.

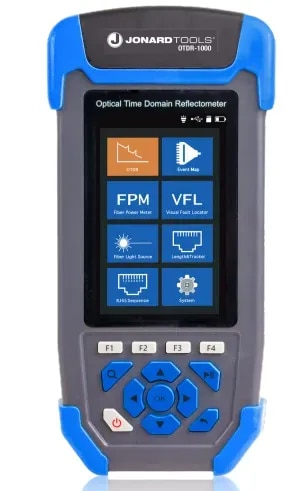

Jonard OTDR-1000 Multi-Function OTDR** is a compact, handheld optical testing device designed for fiber optic installation, maintenance, and troubleshooting. It provides accurate fault detection, fiber length measurement, and loss analysis, making it ideal for FTTH, telecommunications, and enterprise fiber networks. Its user-friendly interface and portable design enable fast and reliable testing in both field and laboratory environments.

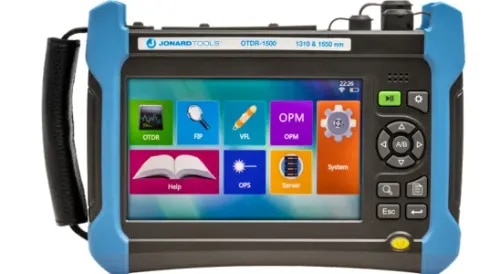

The Jonard OTDR-1500 is a professional-grade, multi-function Optical Time Domain Reflectometer (OTDR) operating at 1310 nm and 1550 nm wavelengths. It accurately measures fiber length, attenuation, splice loss, connector loss, and identifies faults such as breaks, bends, and reflective events within optical fiber cables.

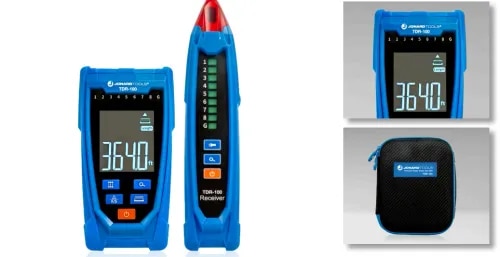

The Jonard TDR-100 Network Cable Tester and Time Domain Reflectometer (TDR) is a professional-grade diagnostic tool designed to test, troubleshoot, and locate faults in copper network cables. Using advanced TDR technology, it accurately measures cable length and pinpoints the location of opens, shorts, and other wiring faults without damaging the cable. The TDR-100 is ideal for network installers, IT professionals, and telecommunications technicians who require fast and reliable cable diagnostics.

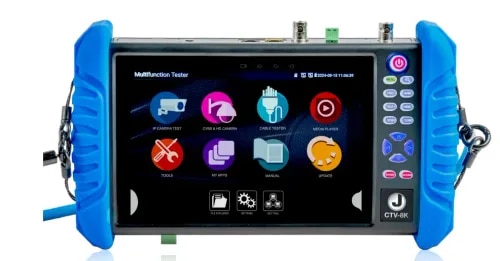

The Jonard CTV-8K Multifunctional 8K CCTV Tester is a professional all-in-one testing and installation tool designed for CCTV technicians and security system installers. It supports testing, configuring, and troubleshooting IP, HD analog, and CVBS cameras, helping technicians complete installations quickly and efficiently. With its high-resolution touchscreen, built-in network tools, and PoE support, the CTV-8K simplifies camera setup and system diagnostics in the field.

The FPL-5050S Mini Light Source & Power Meter Kit is a compact and portable fiber optic testing solution designed for the installation, maintenance, and troubleshooting of optical fiber networks. It combines a stable optical light source with a high-precision optical power meter, allowing technicians to accurately measure optical loss and verify fiber link performance.

The Jonard Tools TFS-100 Handheld Thermal Stripper is a professional fiber optic stripping tool designed to safely and efficiently remove fiber coatings without damaging the glass fiber. Using controlled heat, it softens the coating before stripping, minimizing the risk of fiber breaks and ensuring clean, consistent results. Its ergonomic handheld design makes it ideal for technicians performing fiber optic installations, splicing, and maintenance in both field and laboratory environments.

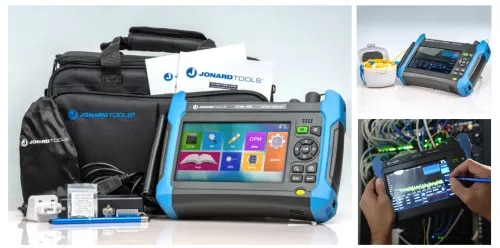

The Jonard Tools OTDR-1500 is a professional-grade Optical Time Domain Reflectometer (OTDR) designed for testing, troubleshooting, and maintaining single-mode fiber optic networks. Operating at 1310 nm and 1550 nm wavelengths, it provides accurate fault location, fiber length measurement, splice and connector loss analysis, and overall fiber link performance evaluation. Ideal for FTTx, telecommunications, data centers, enterprise networks, and CATV applications, the OTDR-1500 features a user-friendly touchscreen interface, fast measurement capabilities, and high-resolution event detection. Its compact, rugged design and rechargeable battery make it suitable for both field technicians and network installers working in demanding environments. Key Features Dual wavelengths: 1310 nm / 1550 nm Accurate fiber fault and break location Measures fiber length, attenuation, splice loss, and connector loss High-resolution event analysis with clear trace display Intuitive color touchscreen interface Built-in data storage and USB connectivity for report export Long-lasting rechargeable battery for extended field use Compact and durable design for portable operation Applications Fiber optic installation and commissioning Network maintenance and troubleshooting FTTx/PON network testing Telecommunications and broadband infrastructure Data center and enterprise fiber verification CATV and campus network diagnostics
