Digital Torque Tester

Digital Torque Tester

ITEM NO: IEB007068 / IEB035350 / IEB100A00

The IEB Series Digital Torque Testers are precision instruments designed for accurate verification, calibration, and quality control of torque tools in industrial and laboratory environments. Engineered for reliability and ease of use, these testers provide highly accurate torque measurement for production lines, inspection departments, and service centers.

Featuring a high-accuracy measurement system (±1% or ±3 digits), the IEB Series supports multiple operating modes including Peak Hold, Track, and First Peak, allowing users to capture and analyze torque values with confidence. Preset torque values and tolerance limits can be programmed, with audible buzzer and LED indicators alerting operators when test limits are reached.

A large, high-contrast LCD display ensures clear and easy reading of torque values, while six bright LED indicators provide immediate visual feedback during testing. All units operate in clockwise direction and support multiple torque units for global compatibility.

Each tester is supplied with a calibration certificate in accordance with DIN EN ISO 6789, ensuring traceable and standards-compliant performance. USB connectivity enables PC data transfer for documentation and quality reporting, and the universal AC/DC power supply supports worldwide operation.

Key Features:

Torque reading accuracy: ±1% or ±3 digits

Operating modes: Peak Hold / Track / First Peak

Preset torque value and tolerance percentage

Audible buzzer and LED alarm indication

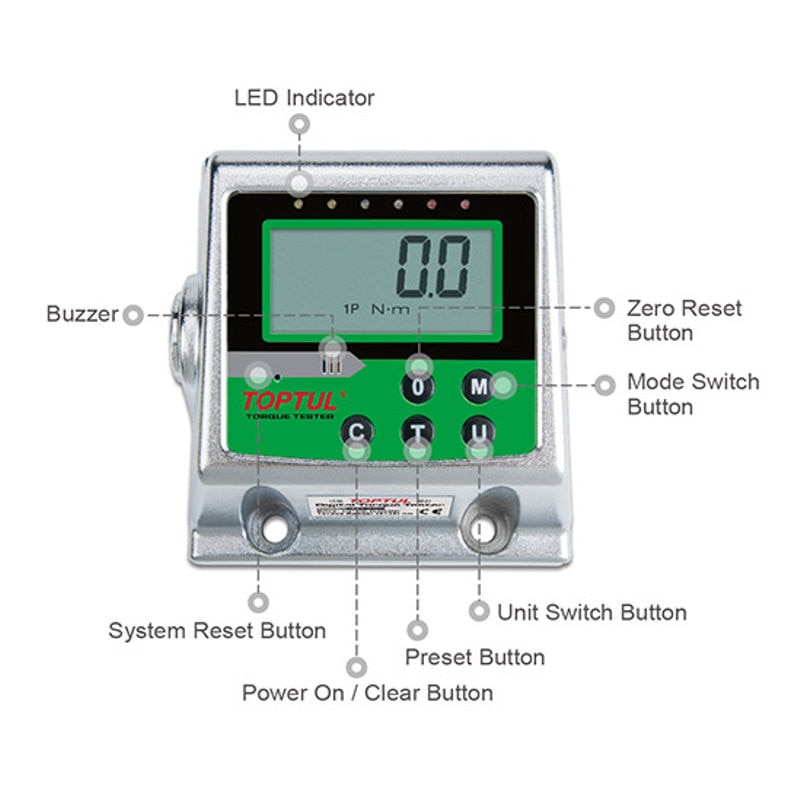

Large LCD display with LED status indicators

Units of measurement: Nm, Ft-Lb, In-Lb, Kg-cm

USB connection for PC data transfer

Tested and certified to DIN EN ISO 6789

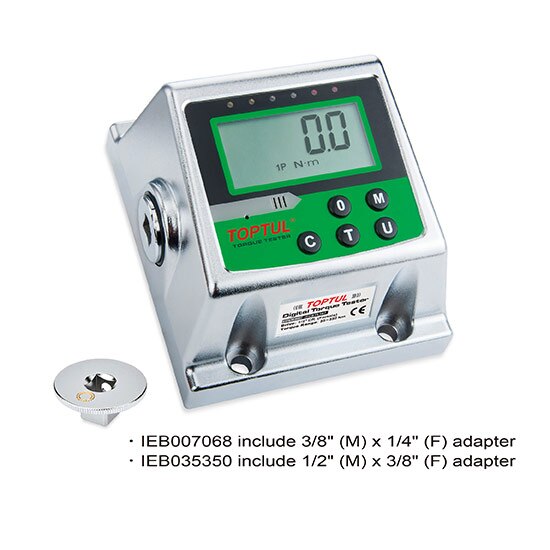

Available Models:

IEB007068 – 1/4“ & 3/8” Drive (F), torque range up to 68 Nm

IEB035350 – 3/8“ & 1/2” Drive (F), torque range up to 350 Nm

IEB100A00 – 27 mm Hex Drive (M), torque range up to 1000 Nm

Designed for precision, compliance, and efficiency, the IEB Series Digital Torque Testers deliver dependable performance for professional torque measurement and calibration applications.
