Description

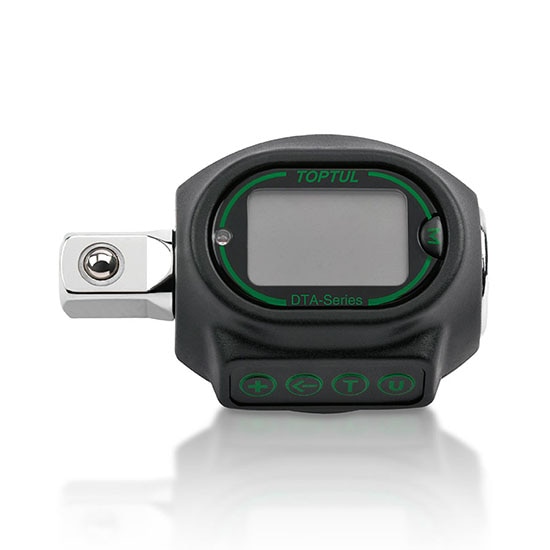

Digital Torque Adapter
ITEM NO: DTA-030N / DTA-135N / DTA-200N
The DTA Series Digital Torque Adapters are designed for professionals who demand accuracy, durability, and ease of use. Built for both clockwise (CW) and counter-clockwise (CCW) operation, these adapters deliver consistent and reliable torque measurements, making them ideal for automotive, industrial, and maintenance applications.
Featuring high torque accuracy (CW ±2% / CCW ±2%, with DTA-030N at ±3%), the DTA Series ensures precise readings for a minimum of 5,000 tightening cycles. Users can switch effortlessly between Peak Hold mode for maximum torque capture and Track mode for real-time monitoring, giving full control during tightening operations.
A large, easy-to-read LCD display, combined with buzzer and LED alerts, provides clear visual and audible feedback when the preset target torque is reached. With support for five torque units (Nm, Ft-Lb, In-Lb, Kg-m, Kg-cm) and 10-set memory storage, this tool adapts easily to various applications and user preferences.
Certified and tested to DIN EN ISO 6789 and BS EN 26789 standards, the DTA Series guarantees dependable performance even in demanding environments. Additional features such as low battery indication, auto shut-off after 3 minutes, and long battery life ensure efficiency and convenience on the job.
Key Features & Specifications:
Torque Accuracy:
CW ±2% / CCW ±2%
DTA-030N: CW ±3% / CCW ±3%

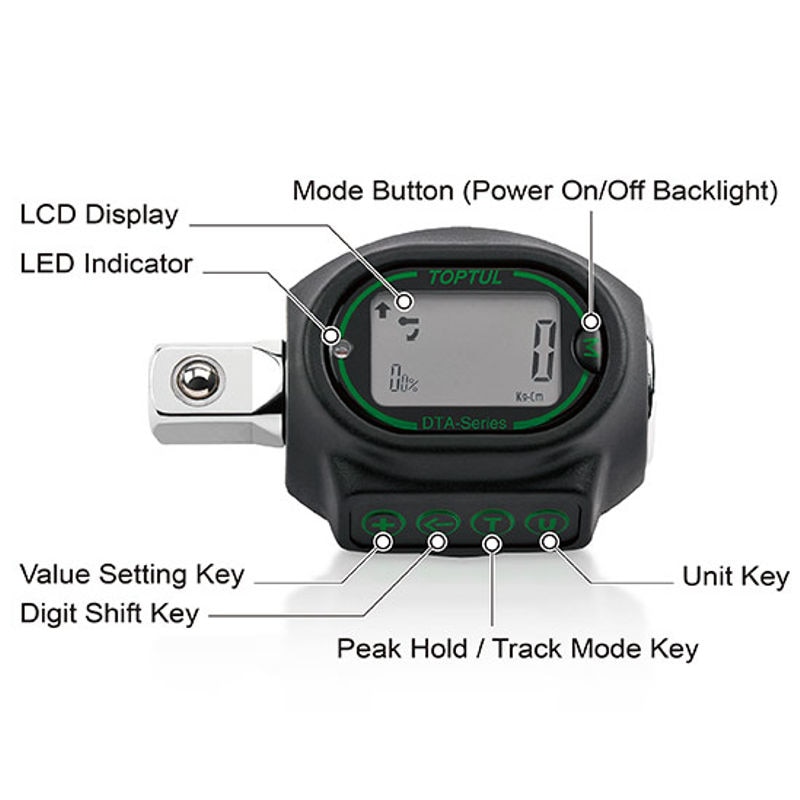

Operating Modes: Peak Hold & Track Mode
Torque Units: Nm, Ft-Lb, In-Lb, Kg-m, Kg-cm
Storage Memory: 10 Sets
Display Resolution:
0.1 Nm, 0.1 Ft-Lb, 1 In-Lb, 0.01 Kg-m, 1 Kg-cm
Large LCD Display with Buzzer & LED Indication
Battery: 3V CR2032 (50 hours life)
Auto Shut-Off: 3 minutes
Working Temperature: -10°C to 60°C
Storage Temperature: -20°C to 70°C
Humidity Range: 0–90%
The DTA Series Digital Torque Adapter is the perfect choice for professionals seeking precision, reliability, and long-term performance in torque measurement.
