Digital Angle Meter with Magnet

Digital Angle Meter

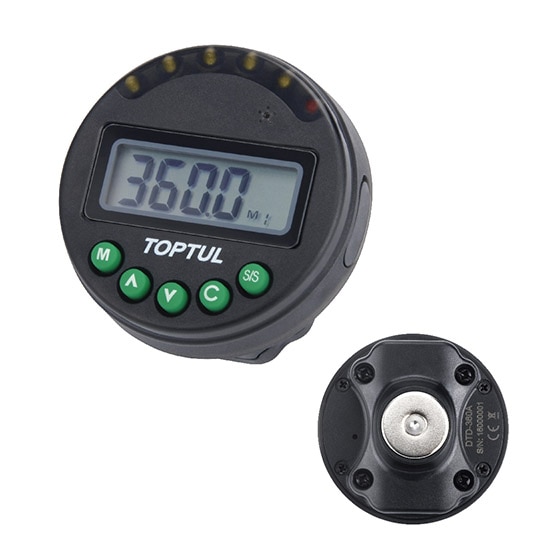

ITEM NO: DTD-360A

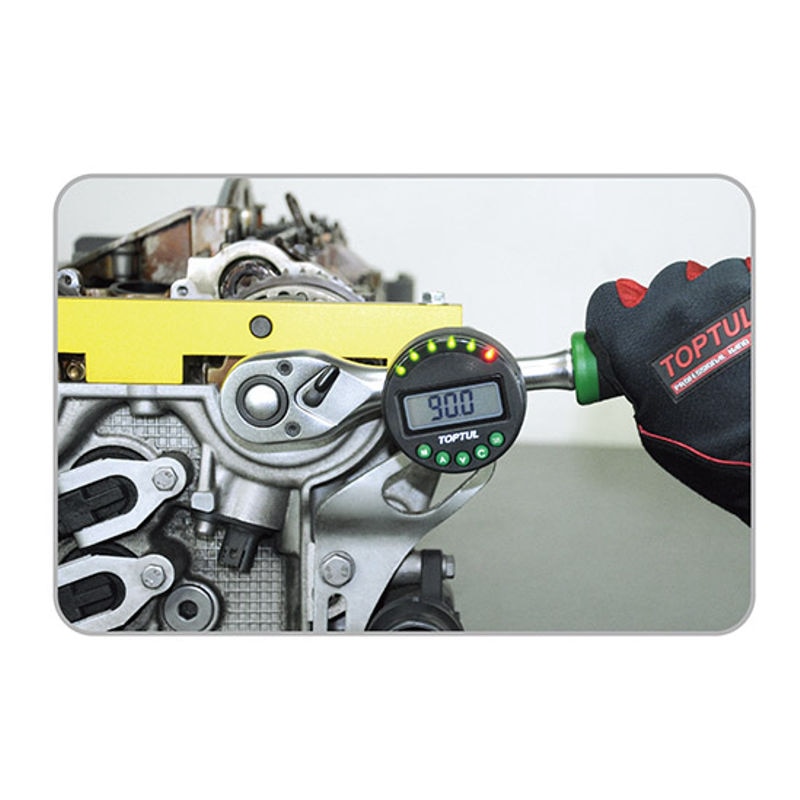

The DTD-360A Digital Angle Meter is designed for applications requiring accurate and repeatable angle measurement during tightening and assembly operations. Compact, reliable, and easy to use, it is ideal for automotive service, industrial assembly, and maintenance tasks where precise angle control is essential.

Delivering ±2° angle accuracy (based on 90° rotation at 30°/sec) with a high resolution of 0.1°, the DTD-360A ensures consistent and dependable results. The meter supports clockwise and counterclockwise operation and offers a wide display range up to 999°, accommodating a broad variety of applications.

The device features 9 preset target angle values and can store up to 50 readings, allowing operators to work efficiently and repeat tasks with confidence. When the preset target angle is reached, a bright LED indicator and audible buzzer provide clear visual and sound alerts to prevent over-rotation.

Power-saving functions such as a low battery indicator and automatic shut-off after 2 minutes help extend battery life and improve usability in daily operations.

Key Features & Specifications:

Angle Accuracy: ±2° (90° rotation at 30°/sec)

Measuring Unit: Degree

Resolution: 0.1°

Target Range: 1°–360° (1° increment)

Display Range: 0°–999°

Rotation Angle Range: Up to 999°

Preset Target Memory: 9 Sets

Storage Memory: 50 Readings

Clockwise & Counterclockwise Operation

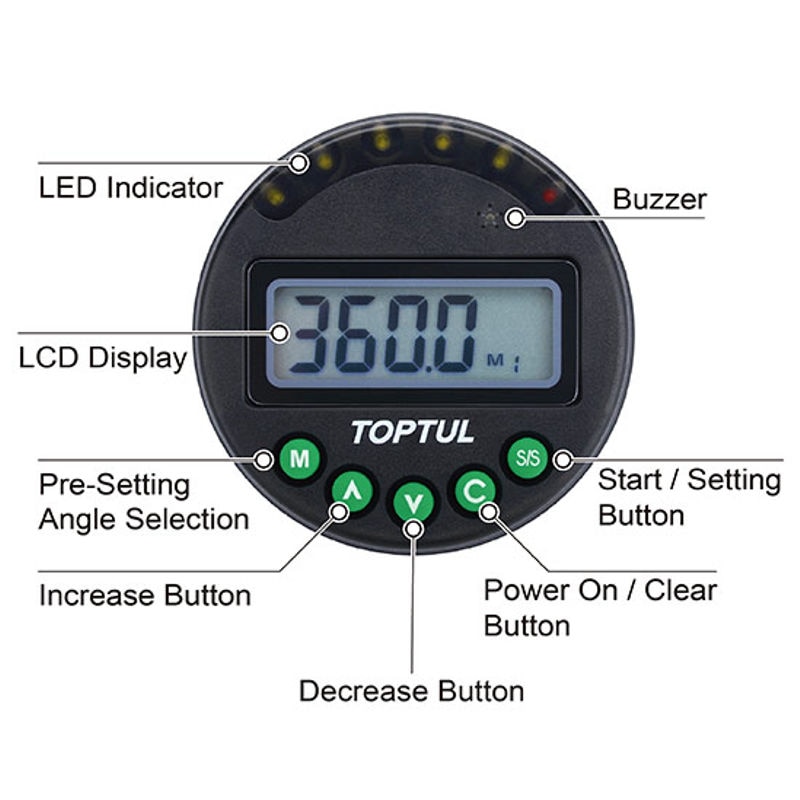

LED Indicator & Audible Buzzer at Preset Angle

Battery: 1.5V AAA × 2 pcs

Battery Life: Approx. 48 Hours

Auto Shut-Off: 2 Minutes

Working Temperature: -10°C to 60°C

Storage Temperature: -20°C to 70°C

Humidity: Up to 90% Non-Condensing

The DTD-360A Digital Angle Meter is the ideal choice for professionals seeking accurate angle measurement, intuitive operation, and reliable performance in demanding environments.
